HYE Series - Lumiaudio

HYE Series

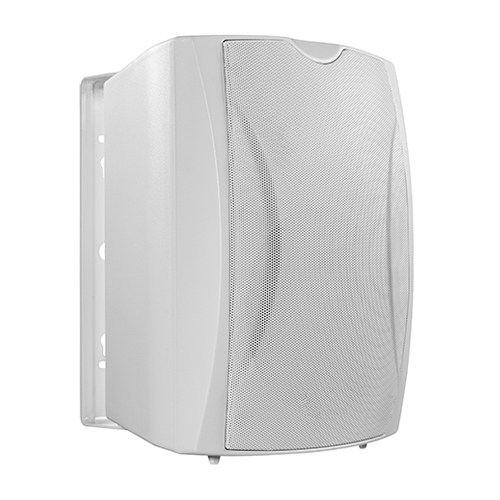

Economy Bass Reflex Wall Speakers

Enjoy great bass performance with affordable price.

HYE-5

HYE-5

Weight:
2.1Kg (4.6lbs)
Cabinet Size:
185x175x245mm (7.3"x6.9"x9.6")
Cabinet Material:
ABS
Woofer Type:
Polypropylene Cone
Woofer Size:
5.25"
Tweeter Type:
Mylar Dome
Tweeter Size:
0.5"
Frequency Response:
130Hz-20kHz
Sensitivity(1M/1W):
89dB
Nominal Impedance:
8Ω
RMS Power:
40W
Audio Input:
Binding Post
Transformer:
N/A
Mounting Bracket:
Aluminum Bracket

HYE-5T

HYE-5T

Weight:
2.235Kg (4.9lbs)
Cabinet Size:
185x175x245mm (7.3"x6.9"x9.6")
Cabinet Material:
ABS
Woofer Type:
Polypropylene Cone
Woofer Size:
5.25"
Tweeter Type:
Mylar Dome
Tweeter Size:
0.5"
Frequency Response:
130Hz-20kHz
Sensitivity(1M/1W):
89dB
Nominal Impedance:
8Ω
RMS Power:
40W
Audio Input:
Binding Post
Transformer:
C70V：2.5W-5W-10W-15W-20W & 8Ω,C100V：5W-10W-20W-30W & 8Ω
Mounting Bracket:
Aluminum Bracket

HYE-6

HYE-6

Weight:
2.7Kg (5.9lbs)
Cabinet Size:
215x200x290mm (8.5"x7.9"x11.4")
Cabinet Material:
ABS
Woofer Type:
Polypropylene Cone
Woofer Size:
6.5"
Tweeter Type:
Mylar Dome
Tweeter Size:
0.5"
Frequency Response:
110Hz-20kHz
Sensitivity(1M/1W):
89dB
Nominal Impedance:
8Ω
RMS Power:
50W
Audio Input:
Binding Post
Transformer:
N/A
Mounting Bracket:
Aluminum Bracket

HYE-6T

HYE-6T

Weight:
2.865Kg (6.3lbs)
Cabinet Size:
215x200x290mm (8.5"x7.9"x11.4")
Cabinet Material:
ABS
Woofer Type:
Polypropylene Cone
Woofer Size:
6.5"
Tweeter Type:
Mylar Dome
Tweeter Size:
0.5"
Frequency Response:
110Hz-20kHz
Sensitivity(1M/1W):
89dB
Nominal Impedance:
8Ω
RMS Power:
50W
Audio Input:
Binding Post
Transformer:
C70V：2.5W-5W-10W-15W-20W & 8Ω,C100V：5W-10W-20W-30W & 8Ω
Mounting Bracket:
Aluminum Bracket
